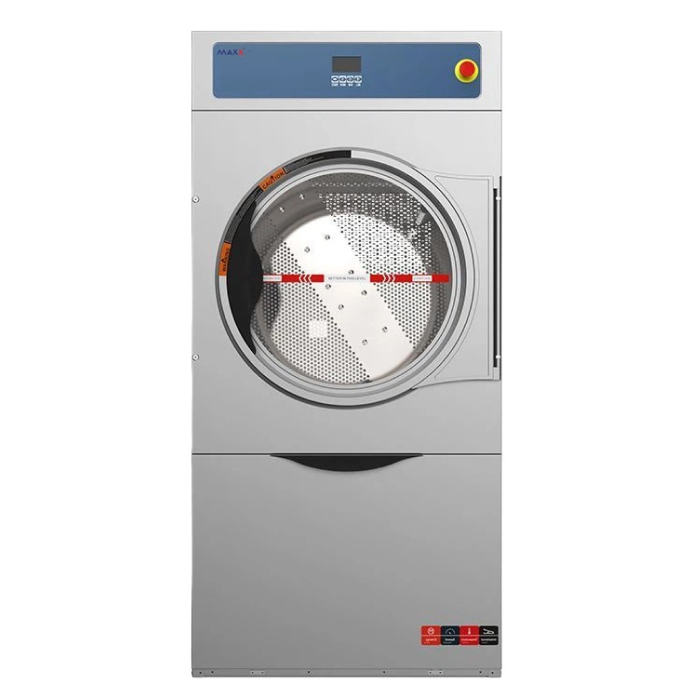

مجفف ملابس بالتهوية سعة 12 Kg بجهد 440V-60Hz MAXX-COMD12EW 440V للاستخدام البحري


المرجع: رمز IMPA –  175541, 175521

تشغيل ثنائي الاتجاه: The dryer is equipped with two-way operation and rotation, which greatly improves the drying efficiency and keeps the clothes from being entangled, so the drying effect Is better.

حماية رباعية الاتجاه: The machine is equipped with a four-way temperature sensor protection device on both dryers, which can immediately trigger an alarm and take the necessary action when a corresponding output is detected.

عملية تجفيف محسّنة: The new system of mixed axial-radial airflow increases the efficiency of the whole drying process.

أزرار التحكم: The presence of a Large Control Display screen with multiple languages facilitates better understanding for users and enables effortless operation of the machine.

هيكل شبكي سداسي: The improved Hexagonal lattice structure of the inner drum improves both the efficiency and quality of drying.

إطار شديد التحمل: The dryer is equipped with a heavy-duty frame, bearing, and shaft to reduce wear and tear greatly.

فتحة باب كبيرة: Having a large diameter door with an opening angle of 180° is tremendously advantageous when it comes to effortlessly loading and unloading various items.

فلتر كبير: Large and easy lint collector simplifies clean up.

Compare

المميزات

الموديل: MAXX-COMD12EW 440V
السعة: 12 كجم / 26 رطلاً
مجفف ملابس ثابت التركيب
النوع: بالتهوية
نسخة بحرية بدرجة تجارية
سعة الأسطوانة: 229 لتر
باب قابل للتركيب بالاتجاهين لسير عمل غسيل عملي
سهولة الوصول إلى الأجزاء الحيوية من الأعلى والخلف لصيانة بسيطة
أسطوانة من ستانلس ستيل
لوحة تشغيل سهلة الاستخدام
توفير على المدى الطويل
60Hz-440V-3Ph

المواصفات الفنية

Model MAXX-COMD12EW 440V
Load Capacity 12 kg (26 Lbs)
Drum Volume 286 L
Mounting Type Fixed Mount (Hard Mount)
Type Ventilated
Drum Diameter 745 mm
AC Heating 9 kW
Heating Type Electric
Drum Material Stainless Steel
Control Type Electronic
Construction Type Free-Standing
Panel Language English, Thai, Polish, Spanish, Italian, Malay, etc.
Maximum Heat Emission of Installed Power (%) 0.9
بيانات الاستهلاك
Total Time at Full Load (min) 30–35
Energy Consumption at Full Load (kWh) 5
Evaporation Rate (g/min) 0.22
Energy Consumption per Liter Evaporated (kWh/L) 0.9
التوصيلات
Air Outlet ø 190 mm
Maximum Air Flow 800 m³/hour
Maximum Static Back Pressure 1.8
البيانات الكهربائية
Voltage (V) 440 – 480 V
Frequency (Hz) 60 Hz – 3 Phase
Phase 3 Phase
Required Fuse (A) 5
Motor (kW) 2.5 kW
Heating (kW) 12 kW
Total Power (Motor + Electric Heater + Inverter) (kW) 16.4 kW
تفاصيل الشحن
Product Dimensions W x D x H (mm) 800 x 1044 x 1675
Package Dimensions W x D x H (mm) 950 x 1194 x 1750
Gross / Net Weight (kg) 154 / 139
Shipping Volume 1.99 m³
